A holistic transformation for rural sanitation. Replacing impermeable barriers with nature-based soakage channels in Andhra Pradesh.
Poor greywater management leads to foul odors, mosquito breeding, and the spread of waterborne and vector-borne diseases.
Traditional underground or cement drains are often too expensive to implement and maintain due to budget limitations (approx ₹5 Lakhs per 100m).
The "Magic Drain" (Soakage Channel) is a smart, low-tech solution designed under MGNREGS by the AP Panchayat Raj & Rural Development department.
Interactive 3D representation & Static Layer Breakdown. Width: 0.5m | Depth: 0.4m -> 0.6m (Slope)
Loading Main Model...
10–20mm chips/gravel (topped 2 inches below road level).
40mm metal (medium stones). Filtration layer.
80-100mm boulders (large stones). Primary reservoir.

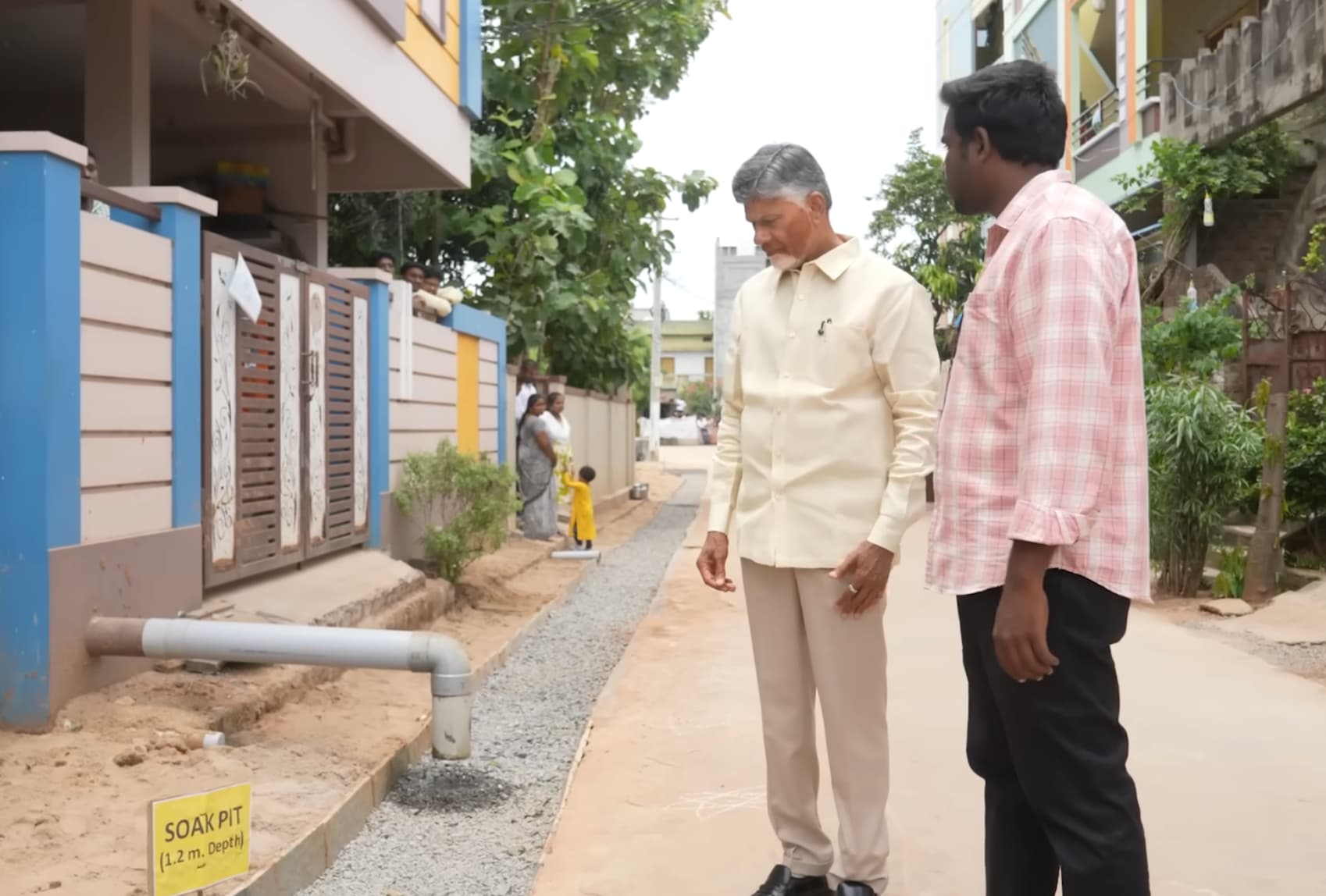

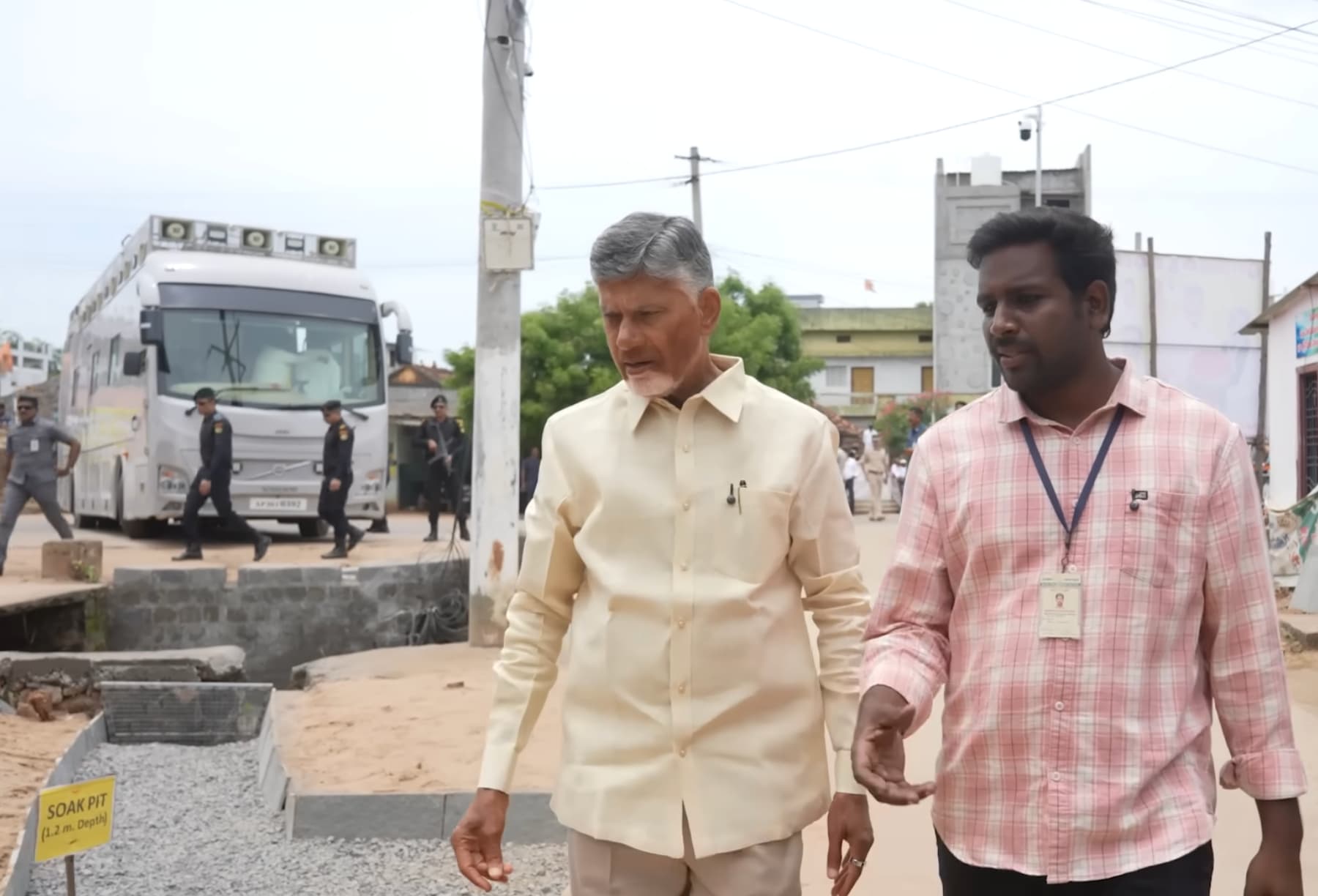

Soak Pits
Every 15-30 Meters
Dimensions
0.5m x 1.2m Deep
Eng Audio: Priya (@priyamucharla)
Tel Audio: Padmaja B (@padmaja54626)
Cost Estimate
₹1,000 / meter
vs Concrete
₹3,500+
Bottom (20-30cm)
Big Stones (80-100mm boulders)
Middle (10-20cm)
Medium Metal (40mm metal)
Top (10cm)
Small Stones (10-20mm chips/gravel)
"Water flows through the stones, filters down through 3 distinct layers, and recharges groundwater via the soak pits rather than stagnating."

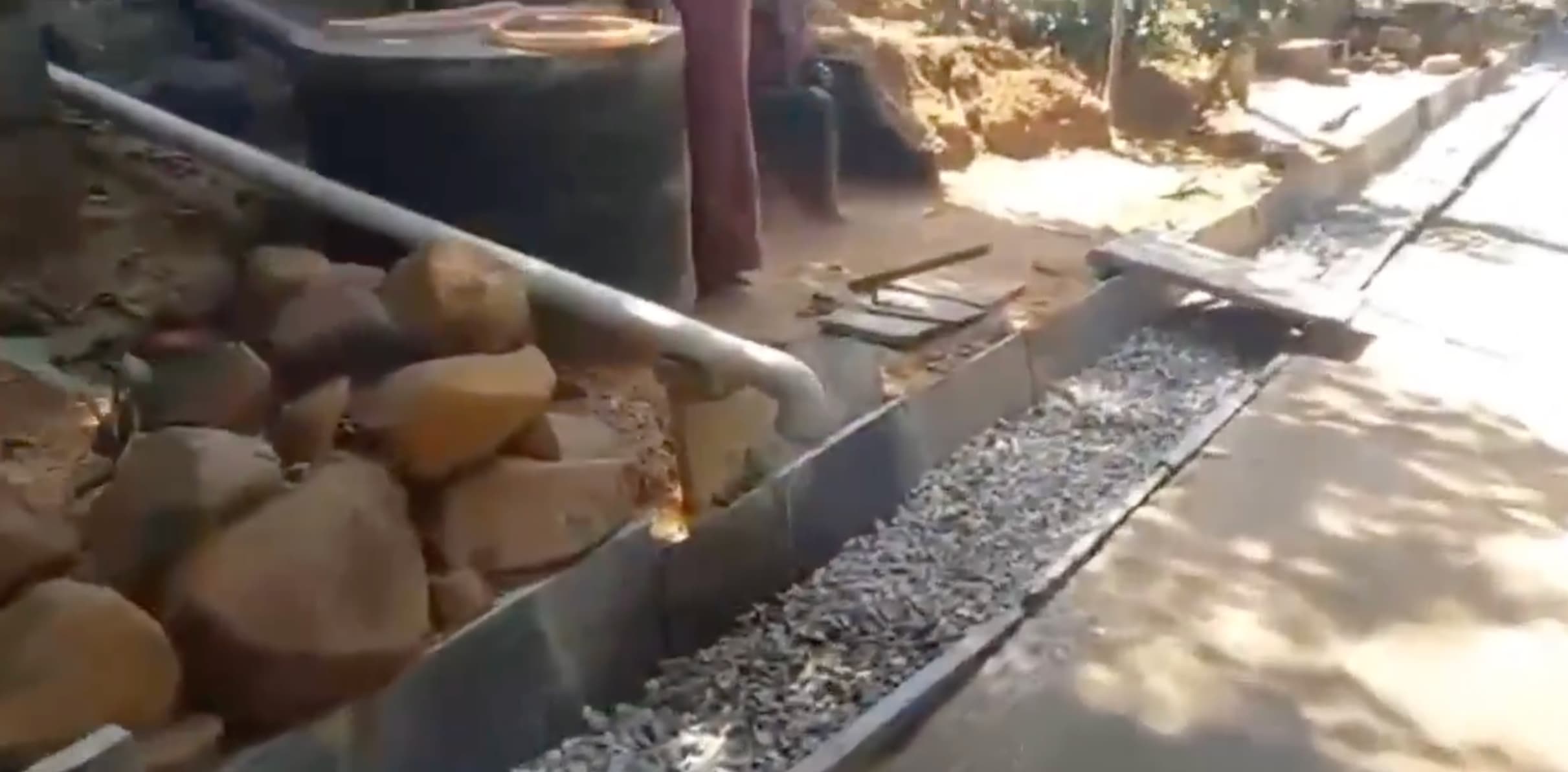

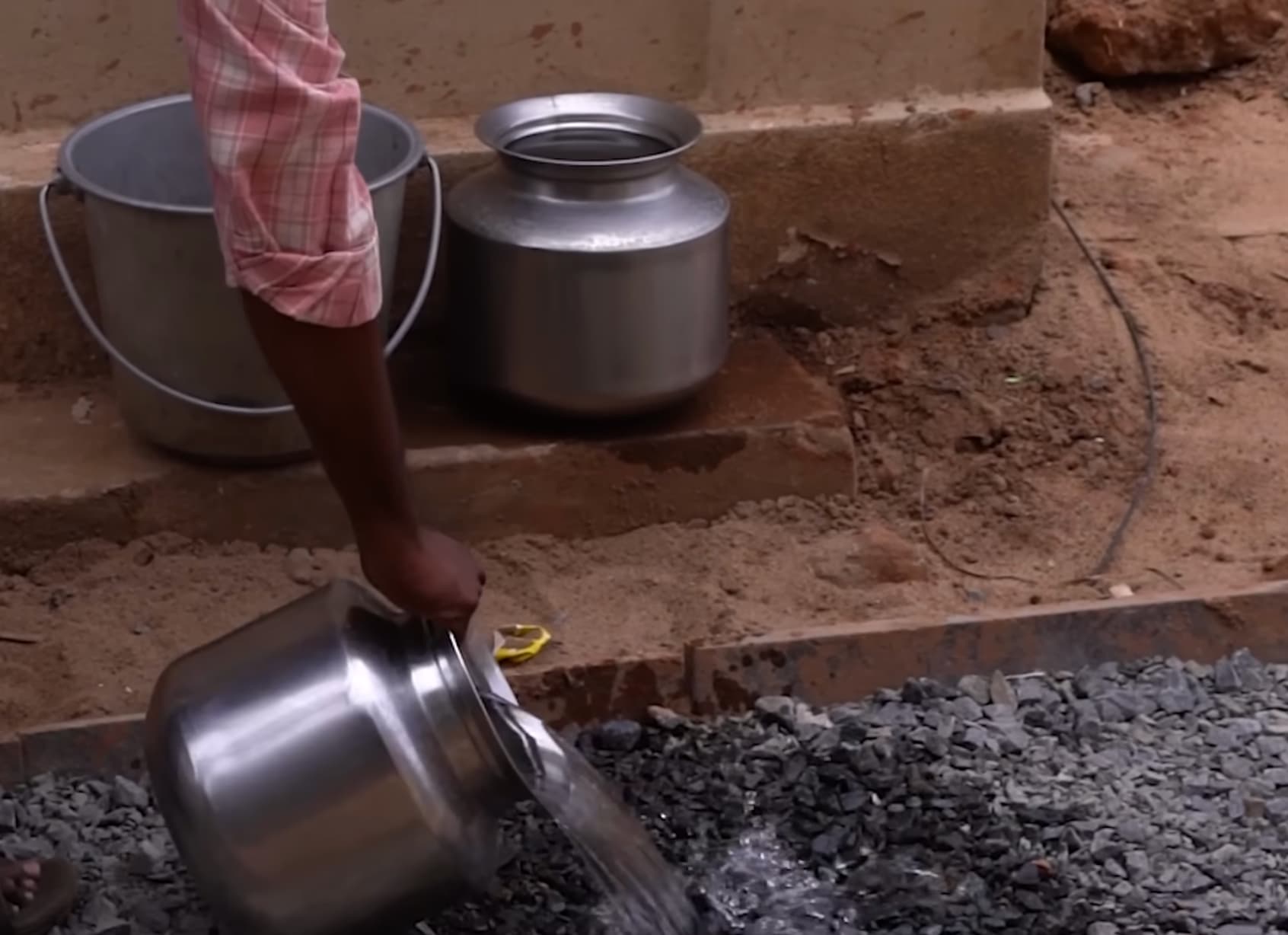

Household greywater flows into the drain and filters through 10mm chips, 40mm metal, and large boulders.
Filtered water enters soak pits placed every 15-30 meters, replenishing the groundwater table naturally.
Simple raking of the top gravel layer once a month removes silt and ensures longevity.
Magic Drain
Explanation

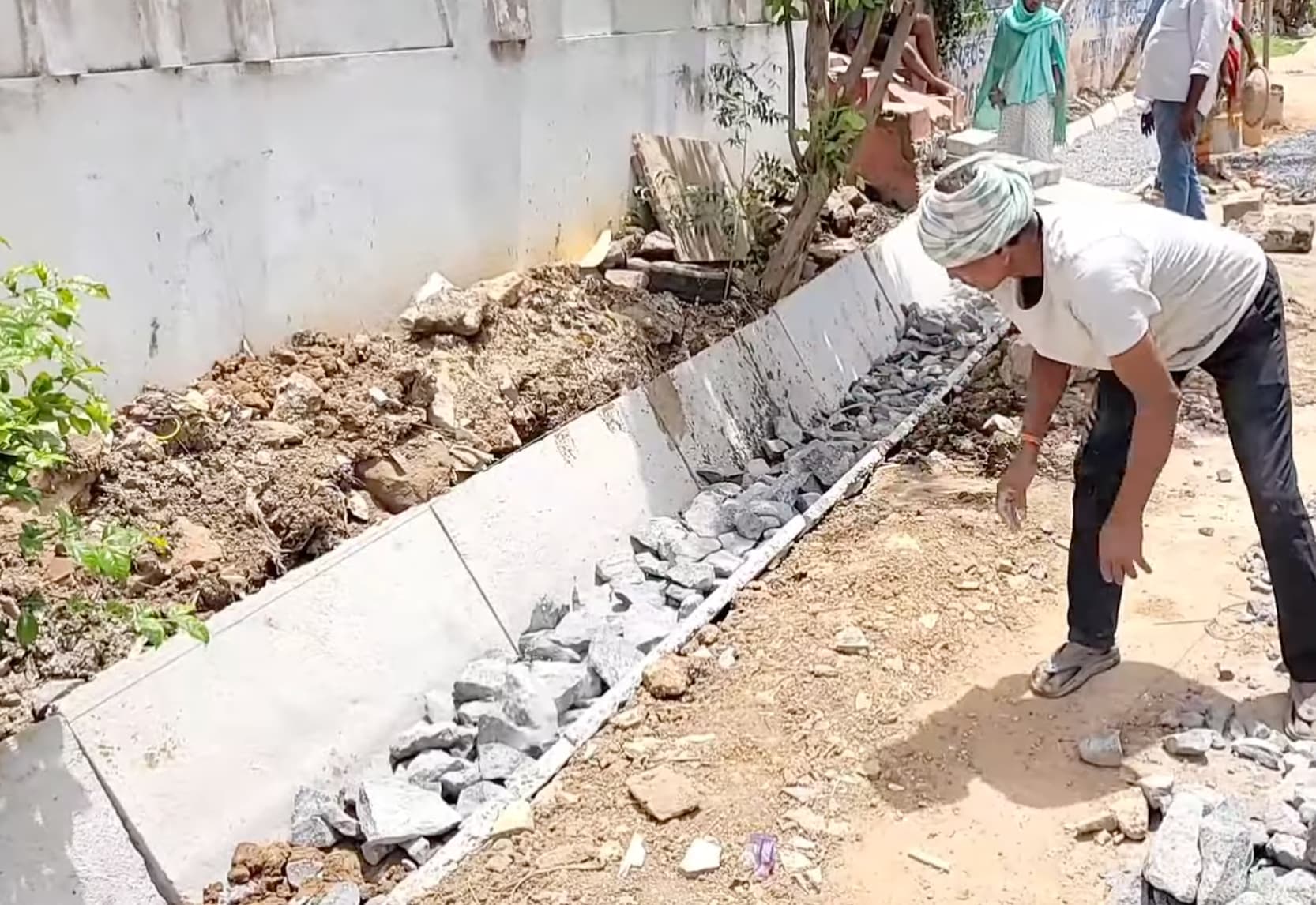

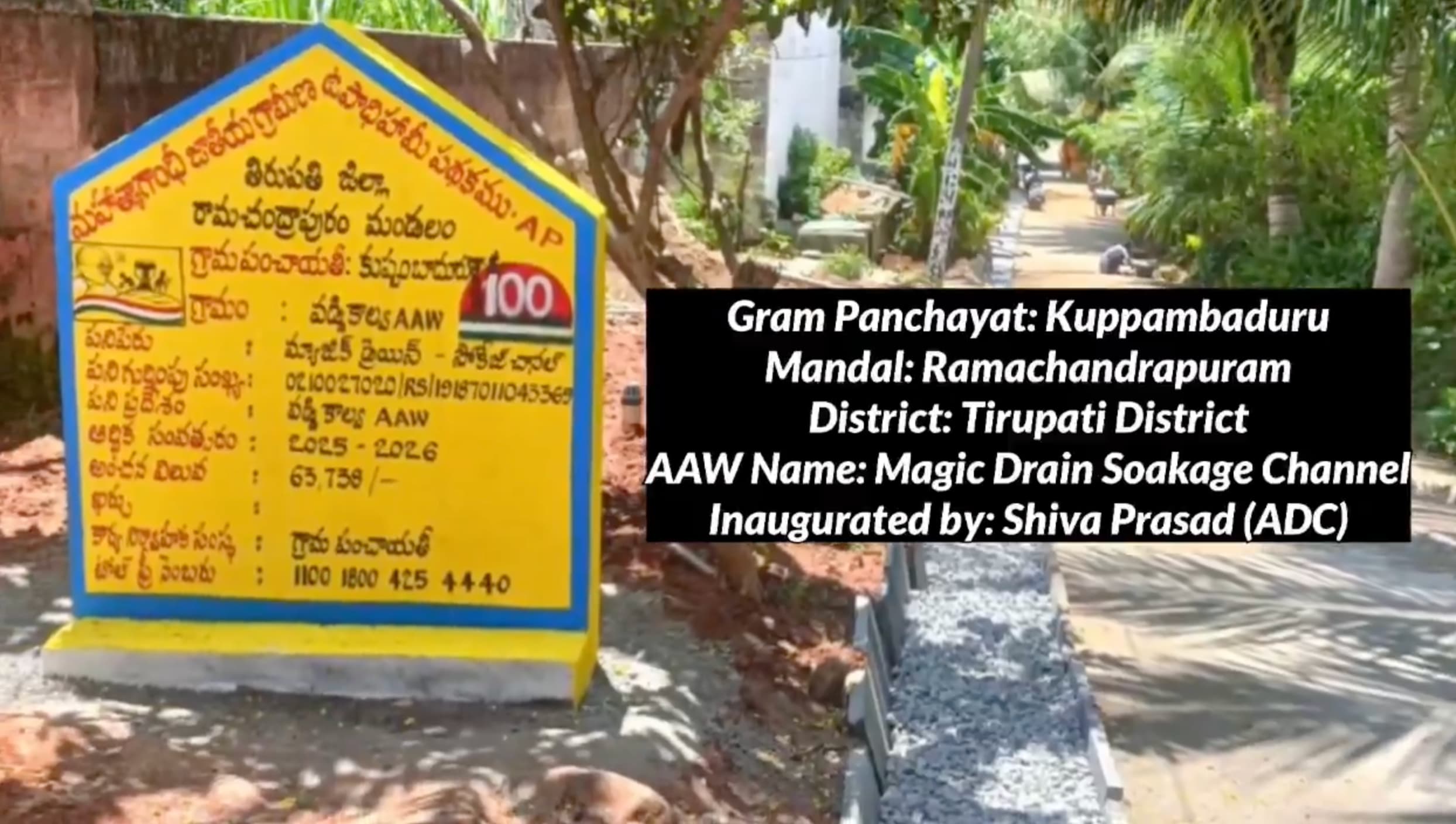

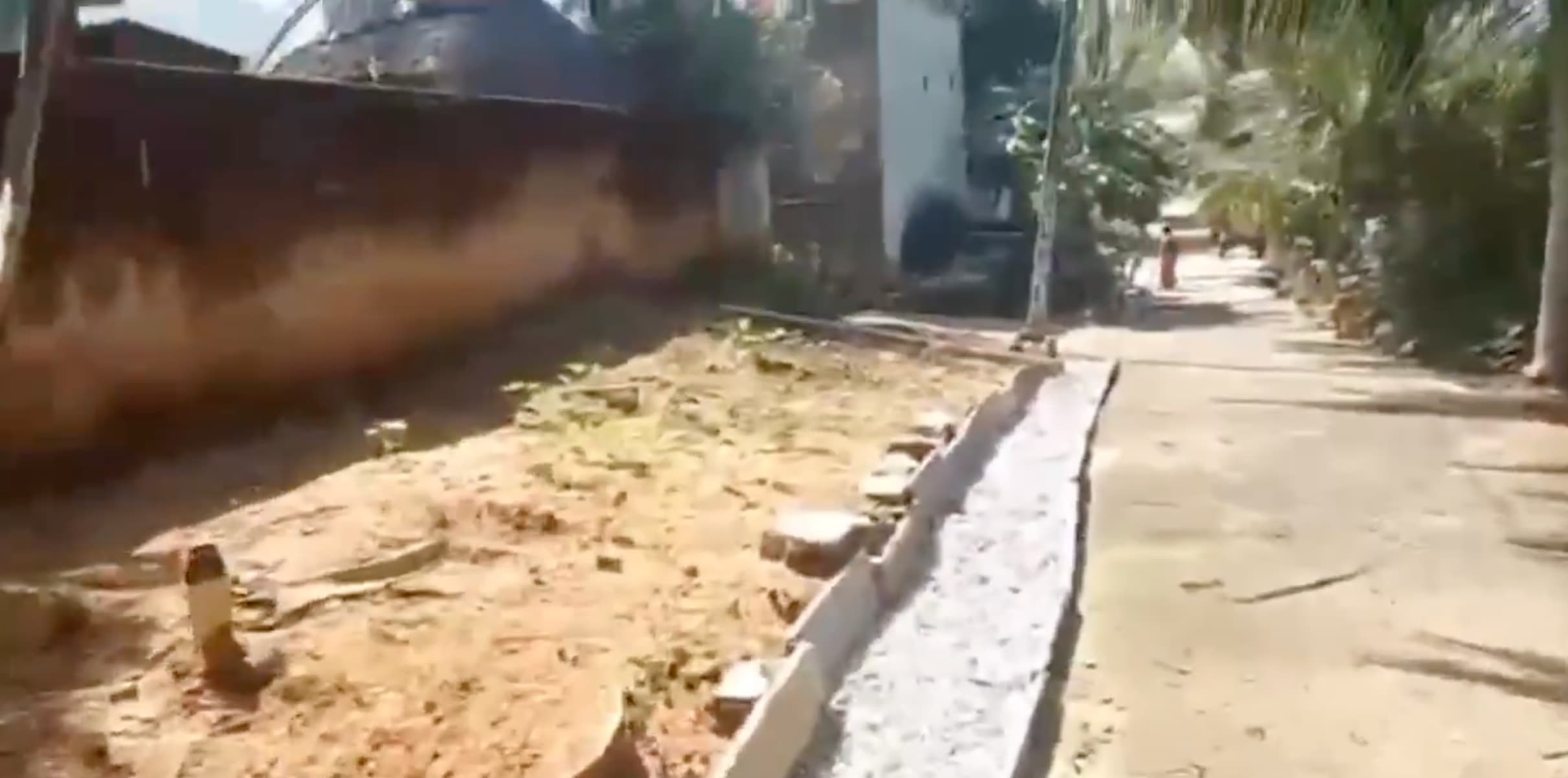

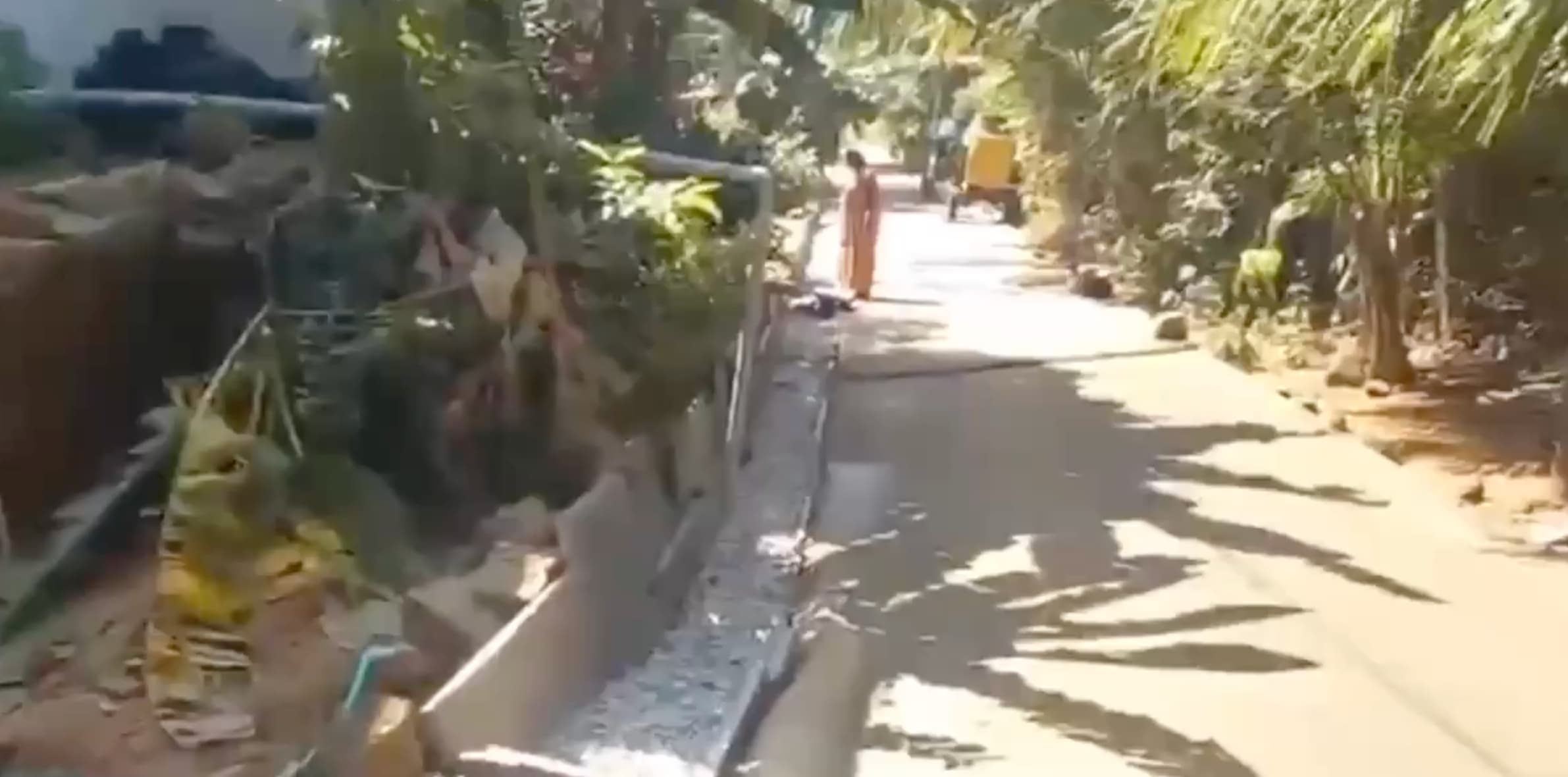

Implementation Success

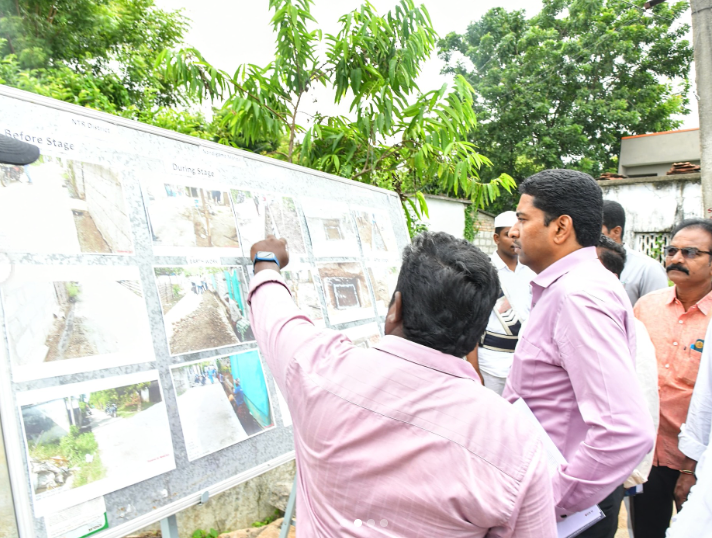

Director Panchayat & Rural Development

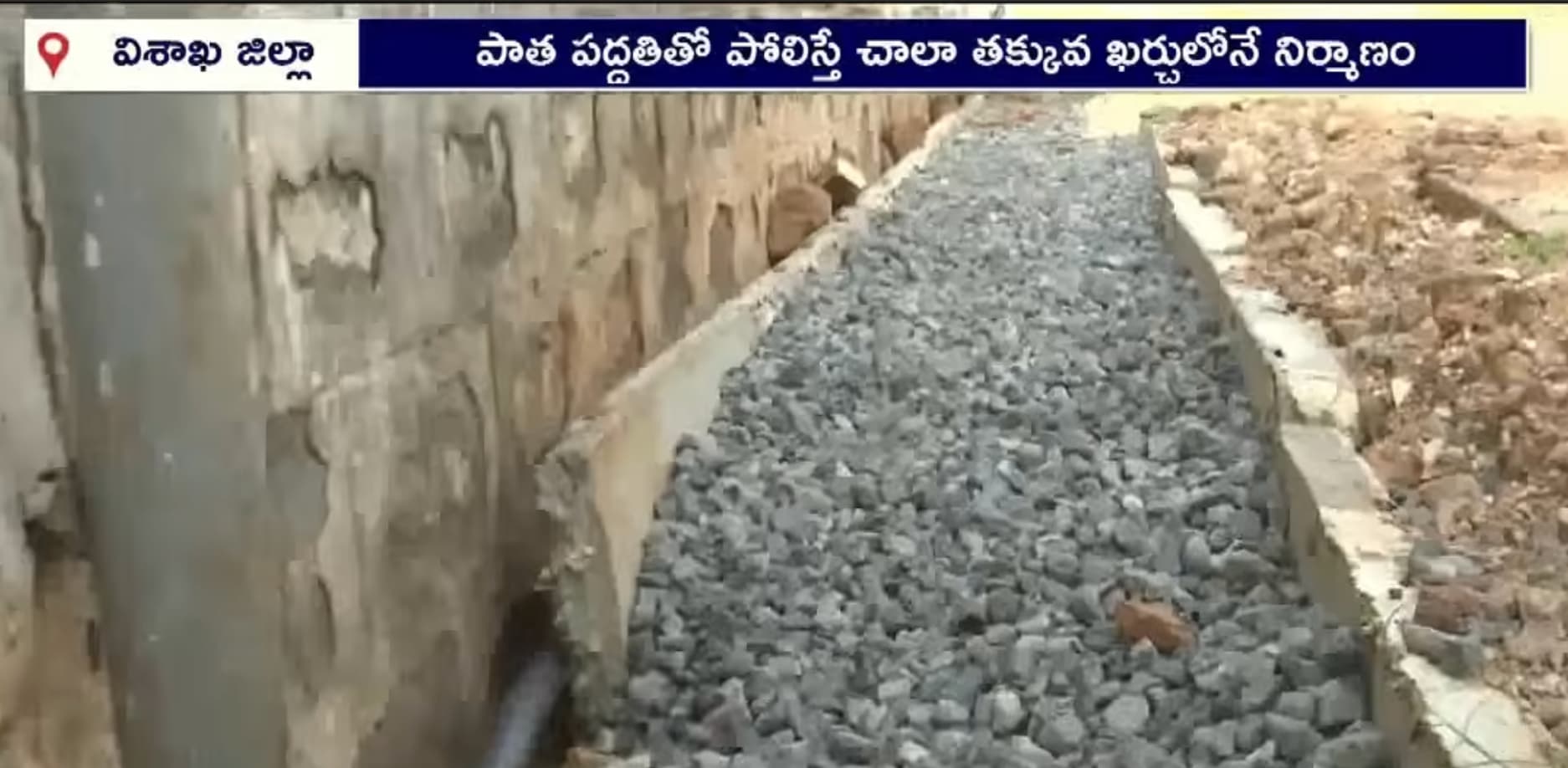

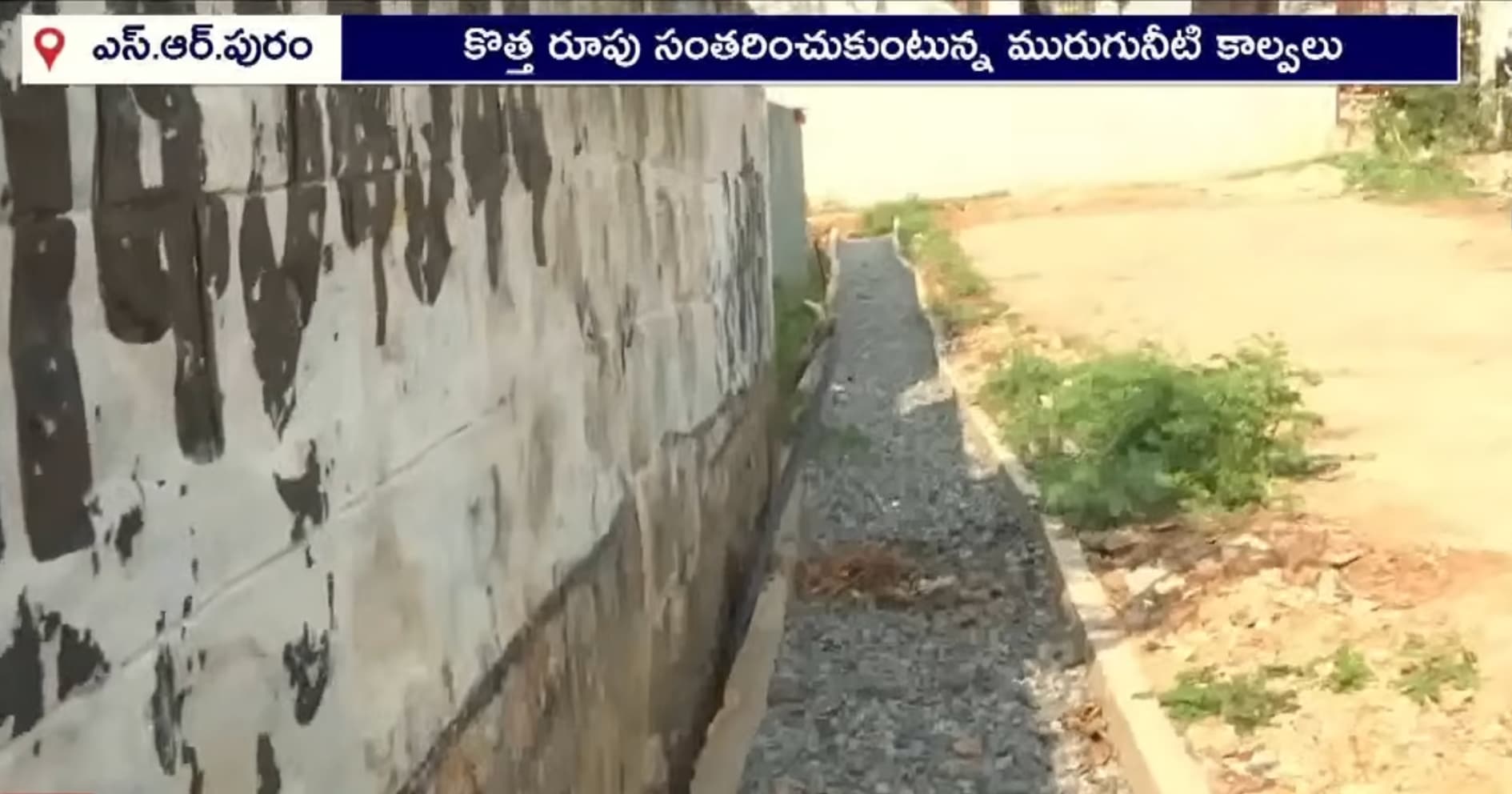

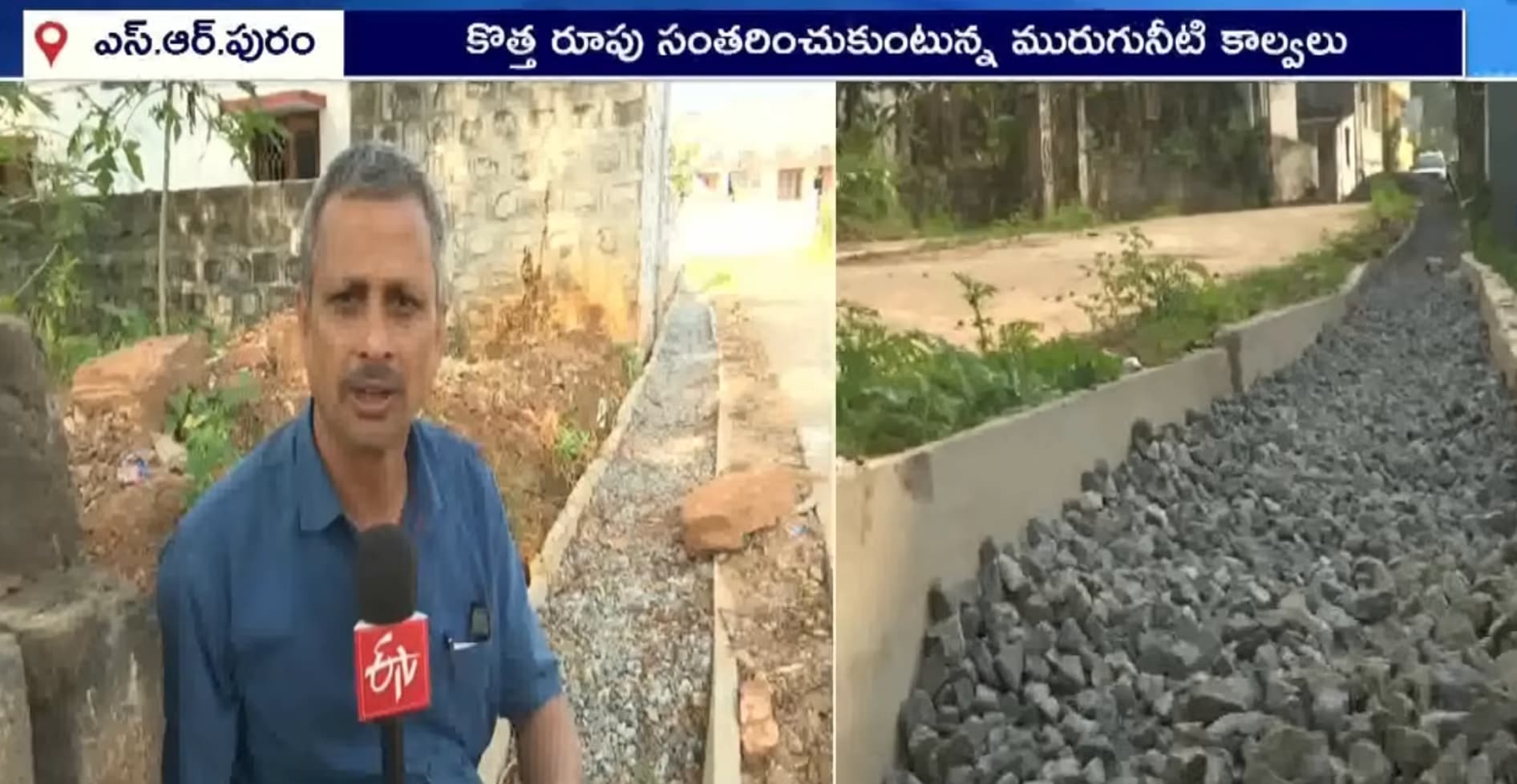

News Report
Coverage

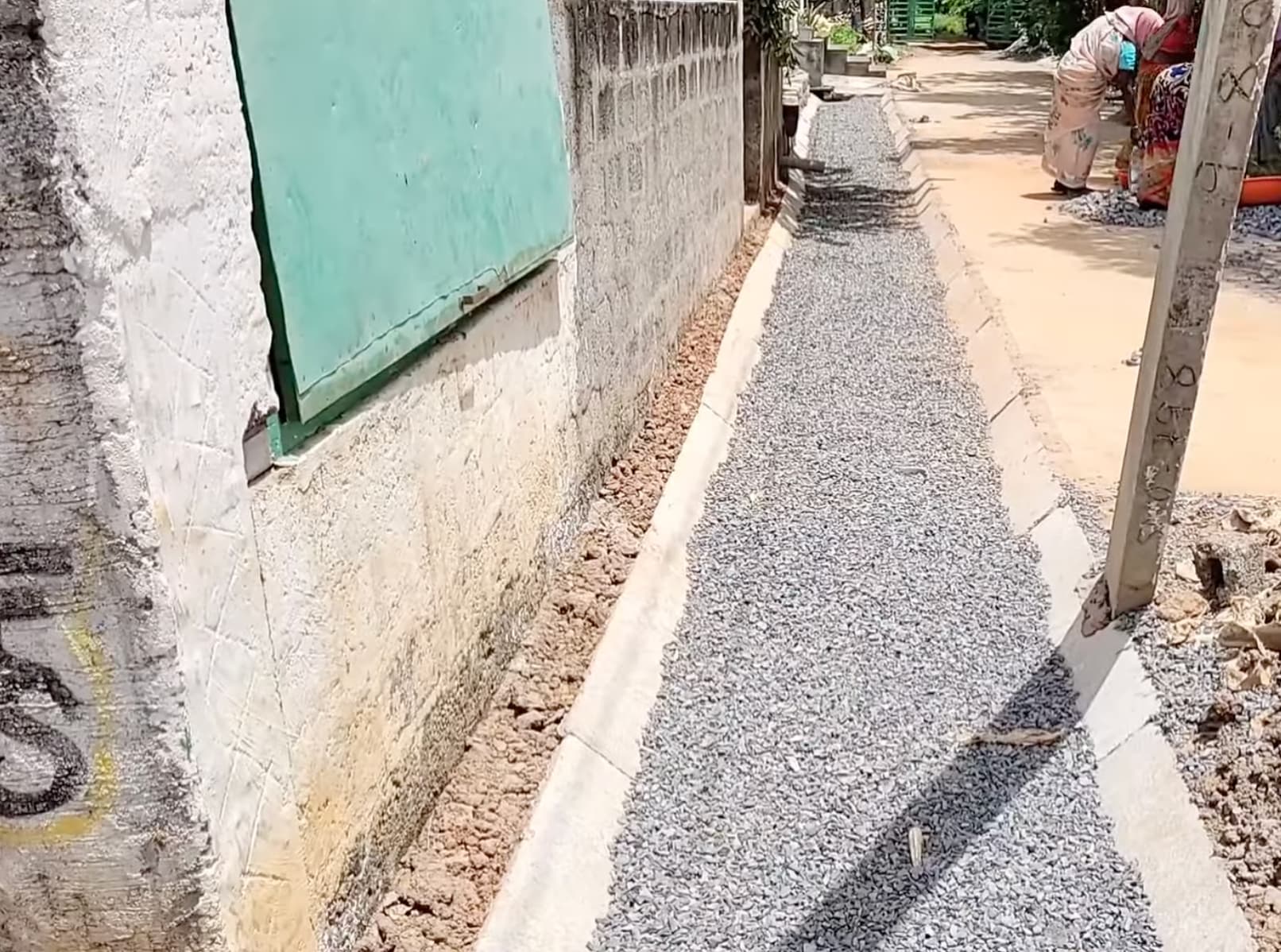

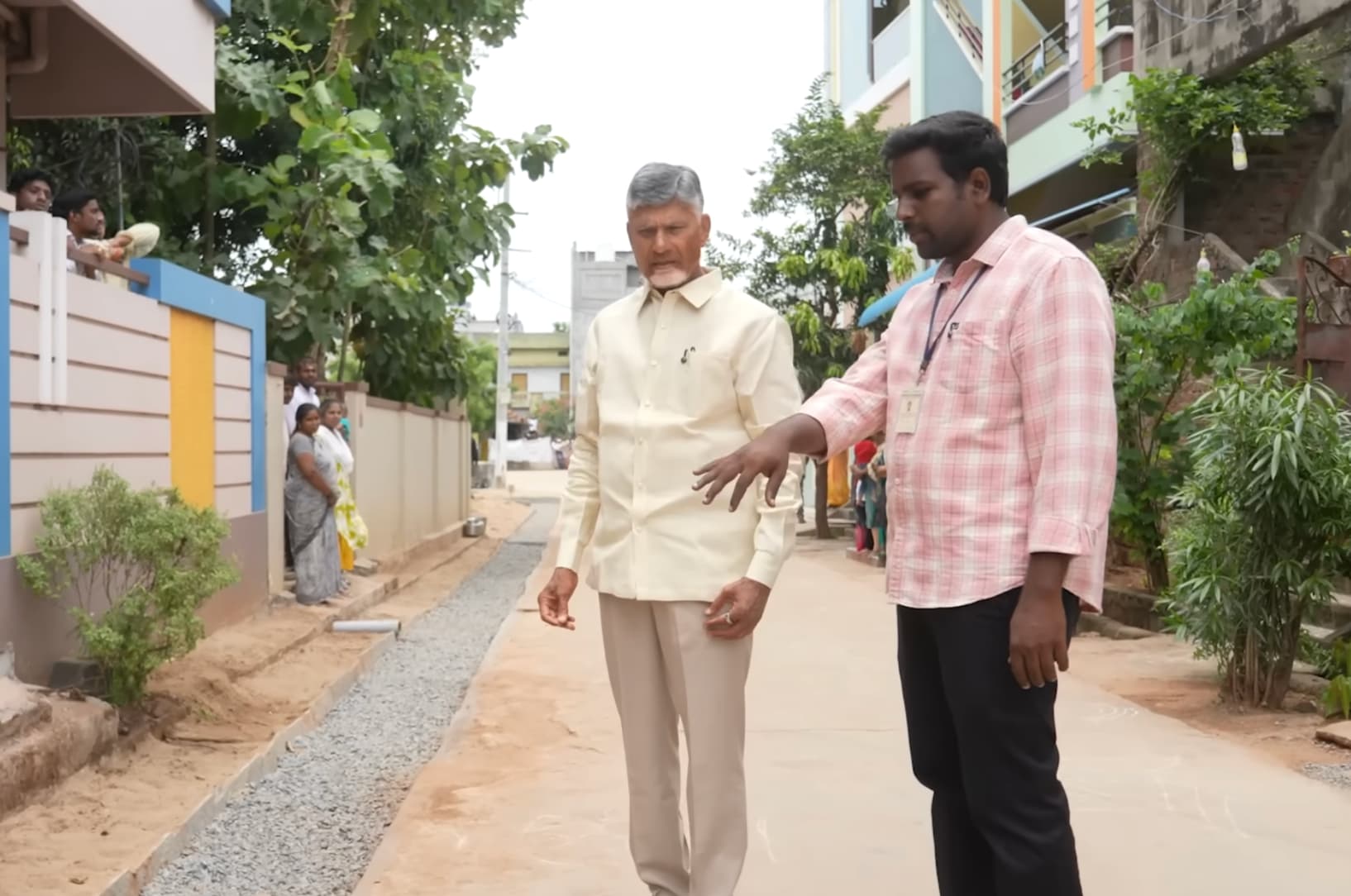

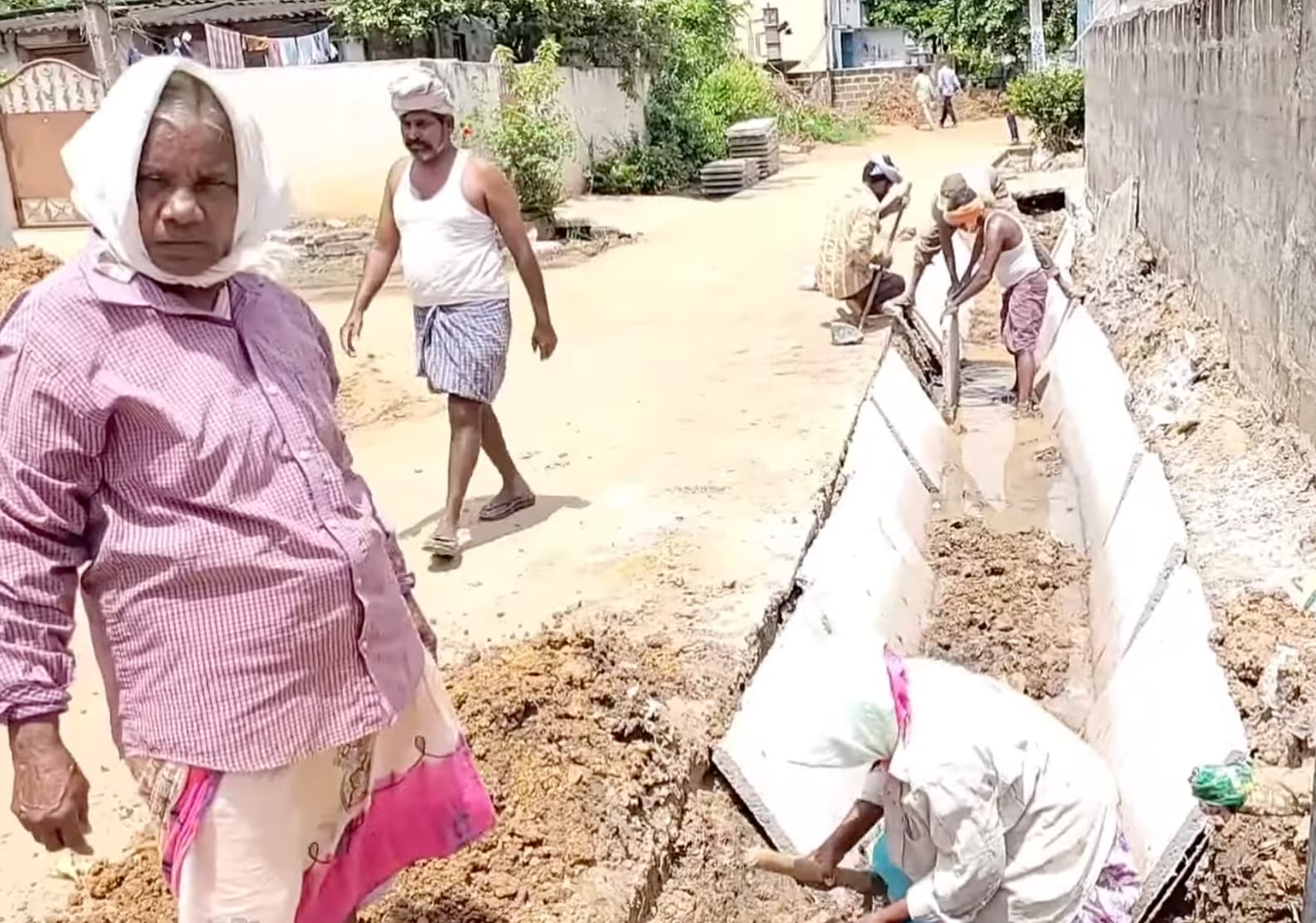

In Villages

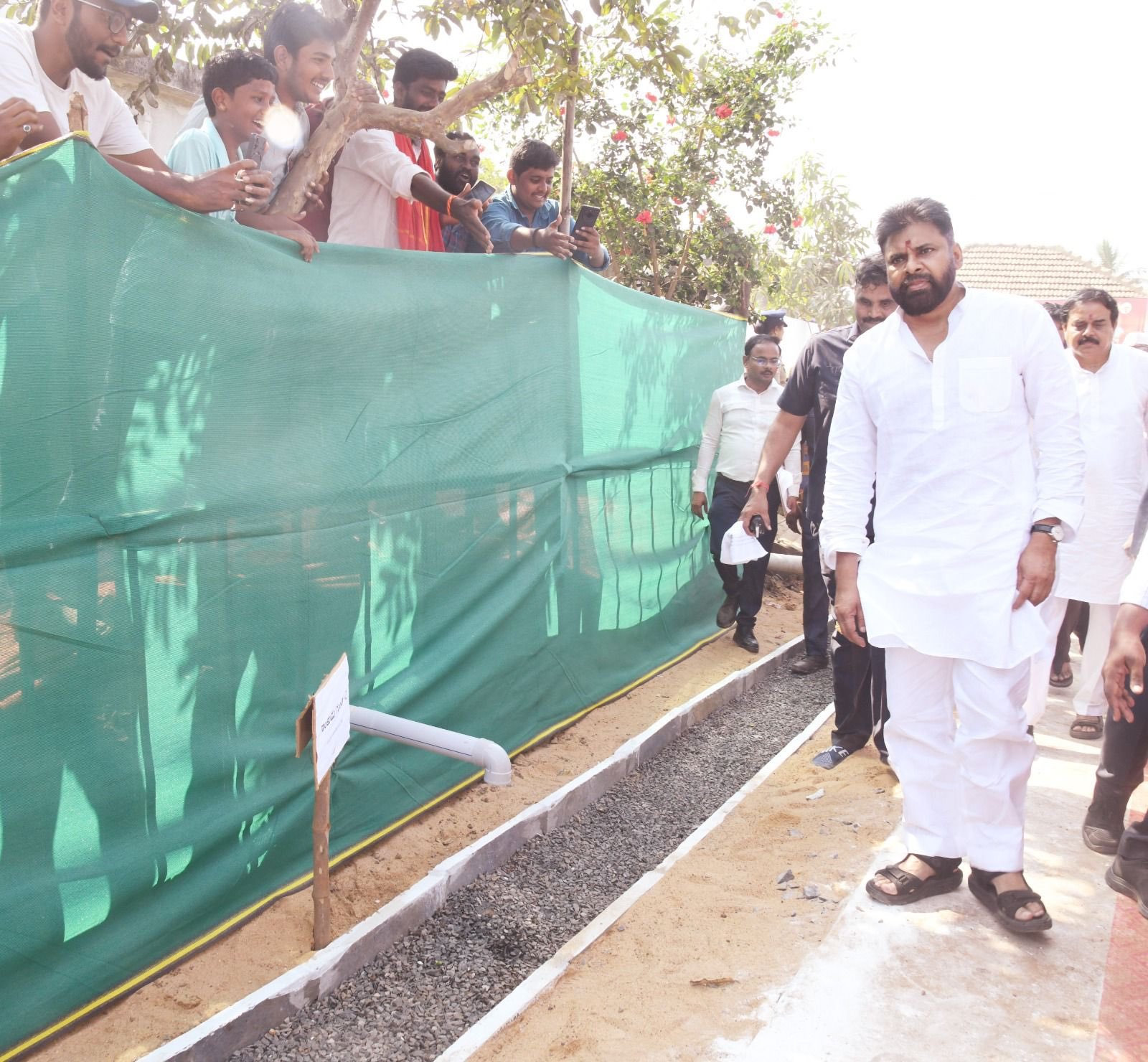

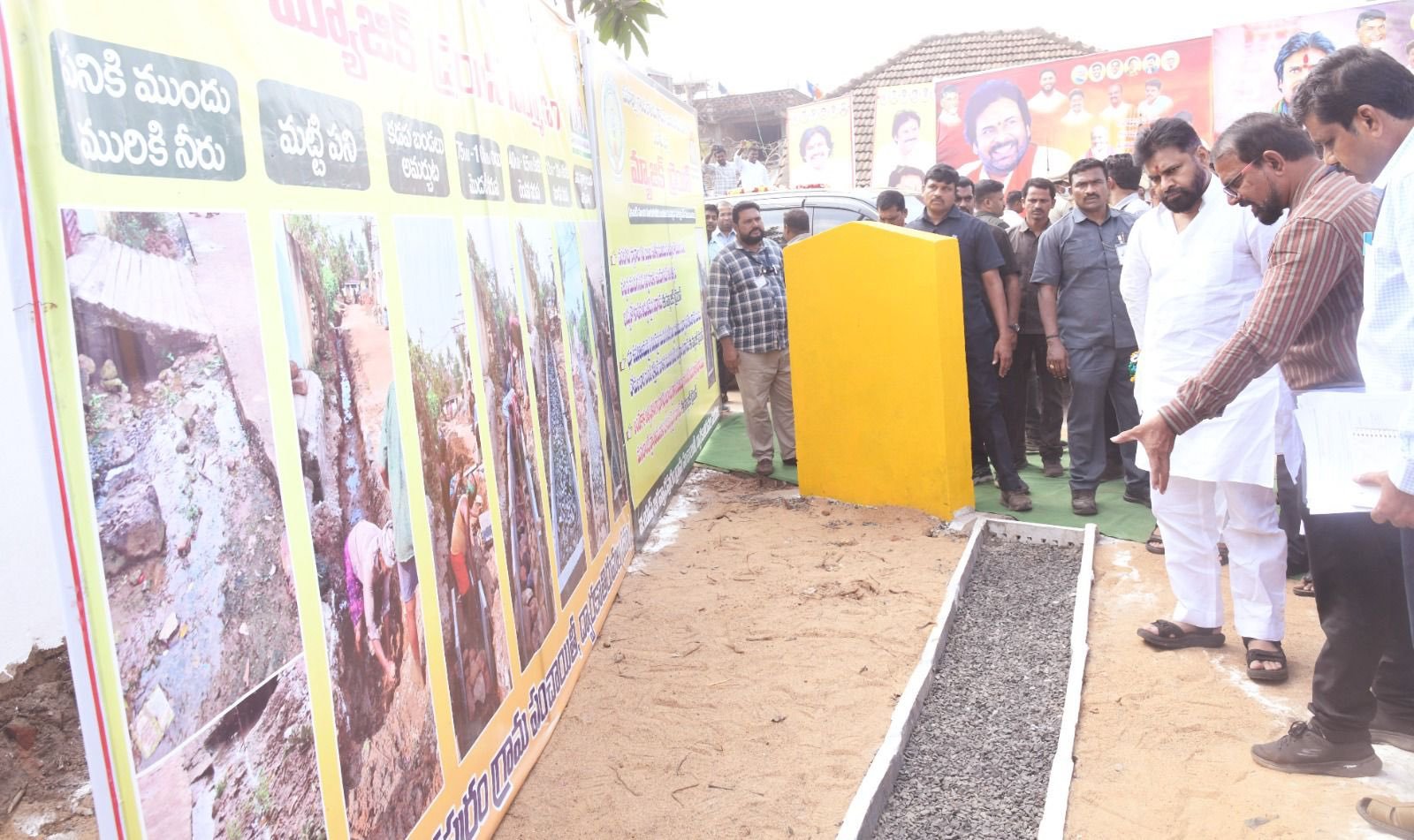

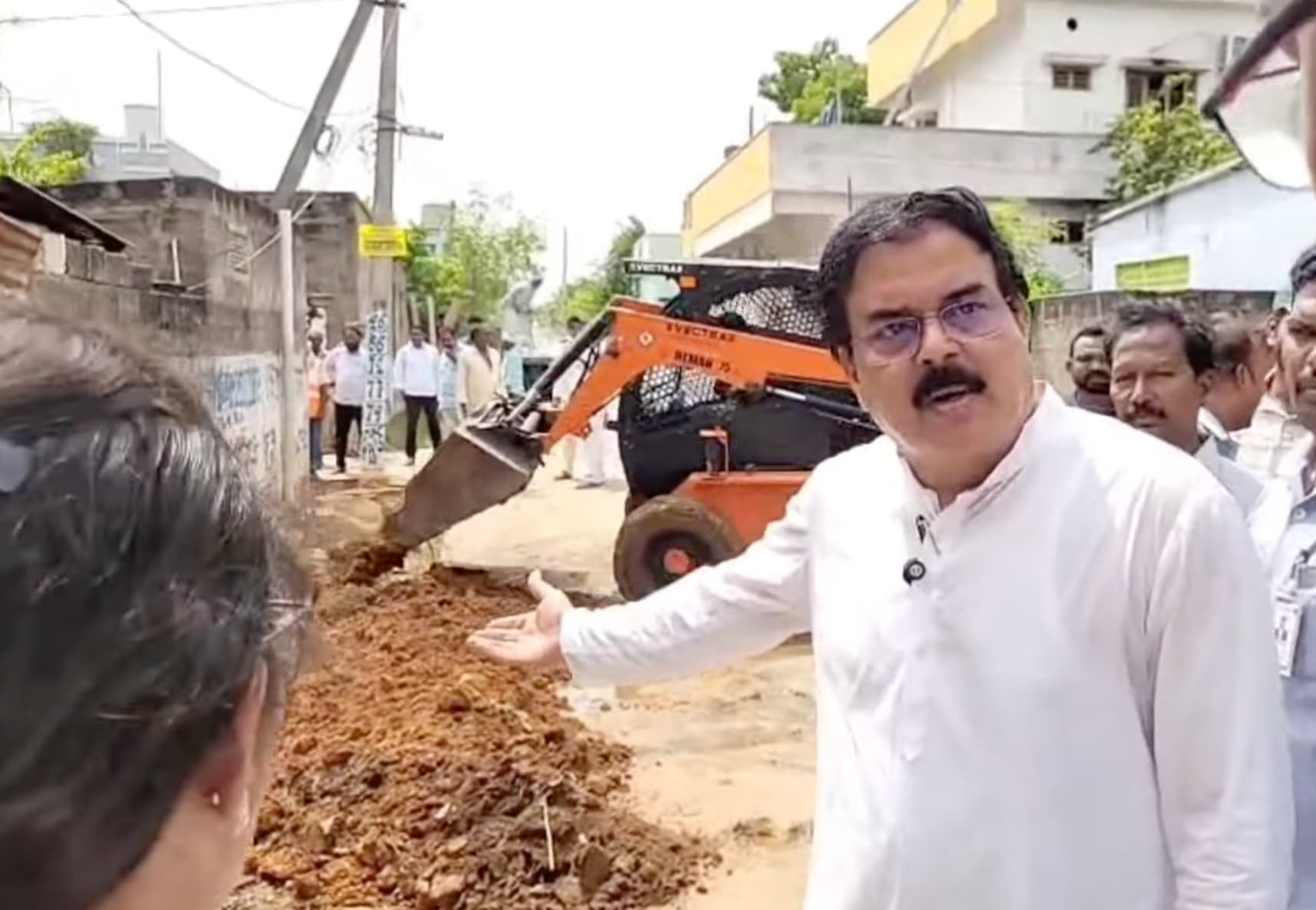

Deputy CM Pawan Kalyan
Inspection in Eluru

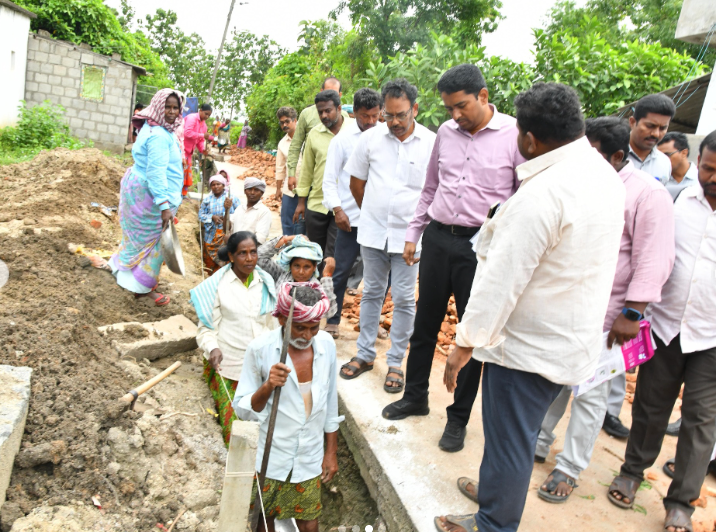

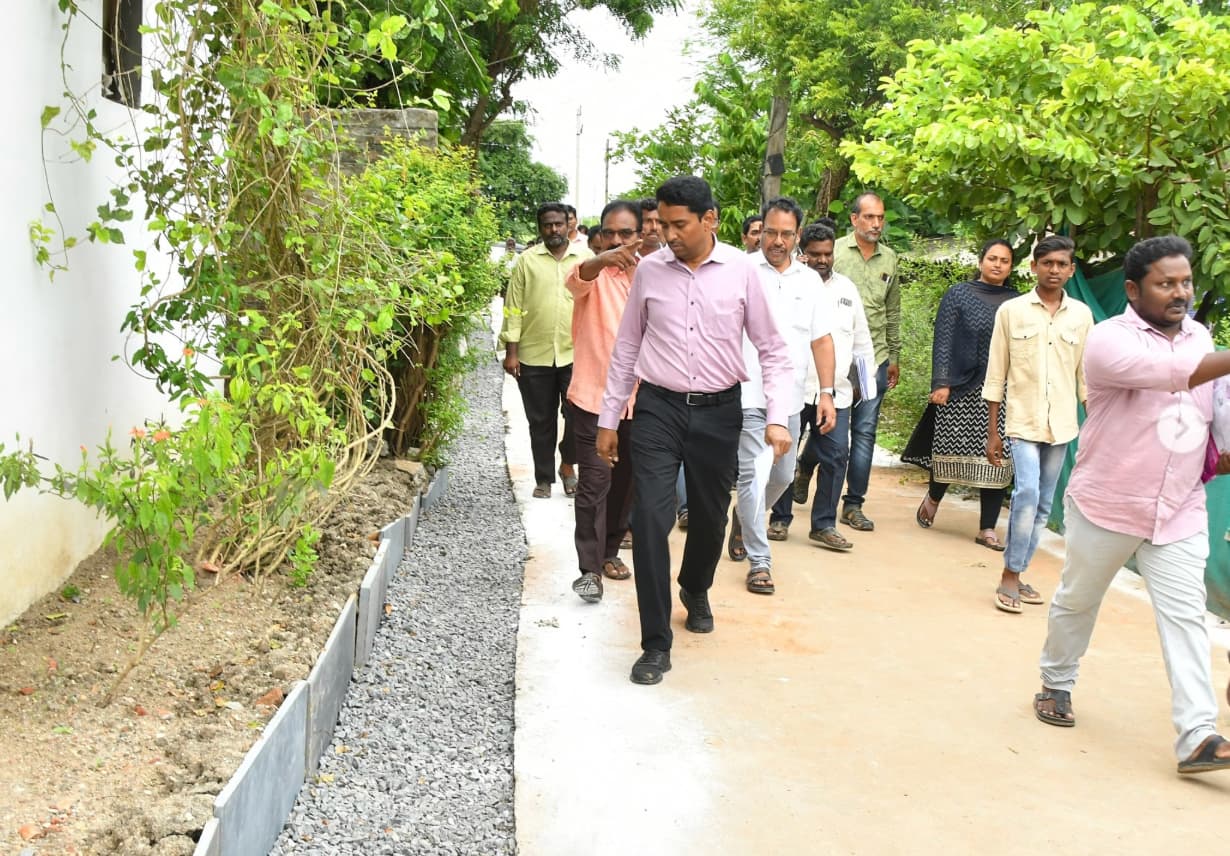

The Joint Secretary, Union Ministry of Panchayati Raj Rajesh Kumar Singh
Inspection Somavaram, NTR district.
(Click images to enlarge)
"Earlier, streets were filled with dirty water. After the rains, this new system drained everything quickly."
Est. Savings: ₹45 Lakh
Standard CC Drain: ₹5 Lakhs per 100m. Magic Drain: ₹0.65 Lakhs per 100m. (Only 13% of traditional cost).
Functions as a storm water drain, preventing water from entering low-lying houses during heavy rains and preventing flooding.
Eliminates foul odors and stagnant water. Provides cleaner streets and sustainable sanitation for rural communities.
The Old Way
Takes dirty water and slides it down the street to a pond. It smells, clogs, and breeds mosquitoes.
The New Way
A trench filled with stones. Water vanishes instantly into the earth. Needs simple raking once a month.
